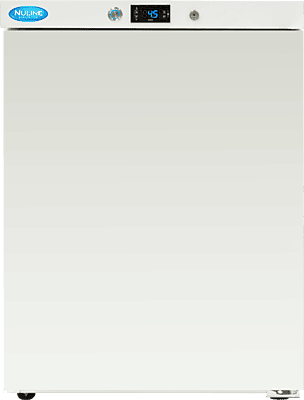

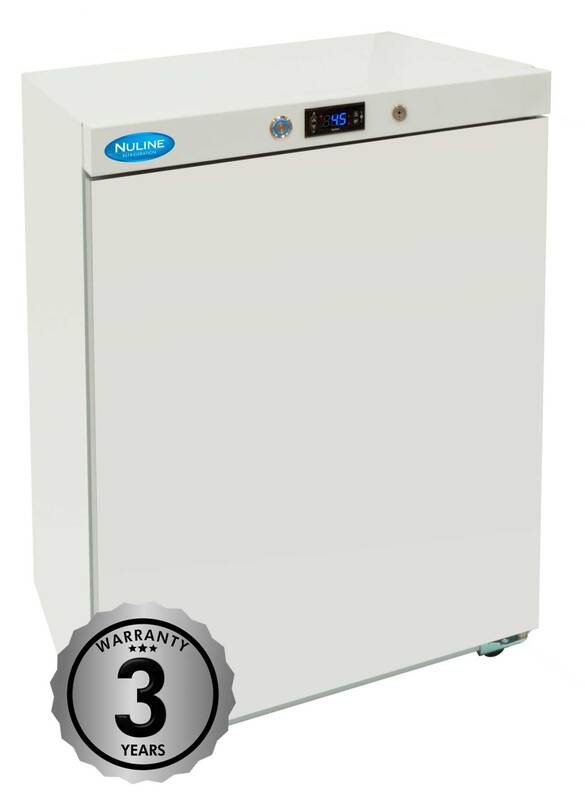

HF200 Series Spark Safe Freezer
This freezer unit is ideal to be used in laboratories, pharmacies and hospitals.
The static refrigerated shelves maintain the cold interior.
The spark free interior is specifically suitable to storing volatile and flammable products.
135 Litres
Self Closing Solid Door
Static Refrigeration System
Manual Defrost
2 Fixed In Place Static Refrigerated Shelves
Door Lock
Fan Door Switch
Digital Display with Built-in Alarms
Battery Back Up for Controller
Hi / Lo read out
Port Entry
Remote Alarm Contacts
HF200 specifications
| Model | HF200 |
|---|---|
| Gross capacity | 135 L |
| Temperature range | -18°C to -22°C |
| Ambient temperature range | 10°C to 32°C |
| External dimensions (W × D × H, mm) | 595 × 650 × 830 |
| Internal dimensions (W × D × H, mm) | 455 × 445 × 665 |
| Shelves | 2 static refrigerated shelves, fixed in place (455 × 405 mm) |
| Cooling system / defrost | Static, manual defrost |
| Refrigeration system | Bottom mounted |
| Refrigerant | R600a |
| Door | Solid, lockable |
| Door hinge | Right hand (left hand on request, not self-closing) |
| Self-closing door | Standard on right-hand door |
| Exterior / interior finish | Enamelled steel / ABS |
| Controller | Digital controller with external temperature display |
| Alarms | Visual and audible high/low temperature alarms; door ajar alarm |
| Data logger | Optional |
| Monitoring (BMS) | Remote alarm contacts standard; 4–20 mA transmitter optional |
| Port entry | Standard |
| Controller battery back-up | Standard |
| Energy consumption | 1.02 kWh per 24 h |
| Power | 240 V, 10 A GPO; 0.7 A |
| Castors / legs | Adjustable levelling legs |
| Net weight | 39 kg |
| Packed weight | 46 kg |
| Packed dimensions (W × D × H, mm) | 640 × 670 × 1005 |
| ARTG number | 269955 (Class I medical device) |
| Warranty | 3 years (HR and HF range): defects in materials, manufacture, workmanship and compressor |
Who the HF200 is for
The HF200 is a 135-litre under-bench spark safe freezer holding -18°C to -22°C. At 830 mm tall it fits under a laboratory bench, so it suits research groups, teaching labs and hospital or industrial labs that need a small amount of -20°C storage for flammable solvents, reagents or samples.
Static cooling runs through two refrigerated shelves, fixed in place, so each shelf is a cooling surface. The solid door locks, and built-in high/low and door-ajar alarms come standard.
Remote alarm contacts, a port entry and a battery back-up for the controller are included, so the HF200 can be monitored like a full-size freezer. A 4–20 mA transmitter and a data logger are available as options.
HF200 FAQs
Can I store flammable materials in the HF200?
The HF200 is a spark safe freezer designed for storing flammable materials. Tell us about your chemicals and your room's hazardous-area classification so we can confirm it suits your lab.
Will the HF200 fit under my bench?
It is 595 mm wide, 650 mm deep and 830 mm high, which suits most standard laboratory benches.
Is there a larger spark safe freezer?
Yes. The HF400 holds 350 litres and the HF600 holds 570 litres, both 1850 mm tall.
What warranty does the HF200 have?
3 years from the date of purchase against defects in materials, manufacture, workmanship and compressor.
Do you deliver to Western Australia and other states?
Yes. Nuline ships Australia-wide, including WA, the NT and Tasmania, and to New Zealand and Pacific Island countries through a freight forwarder of your choice. Standard freight delivers to a loading dock. Rite to Site delivery, where the cabinet is taken to the room, unpacked and positioned, is available at extra cost. Freight quotes are valid for 30 days.
What is the lead time?
Stock is typically on hand and ready for dispatch, email info@nuline.au for confirmation.
Specifications from the HF Series Spark Safe Freezer brochure, December 2025. Nuline Refrigeration reserves the right to alter specifications without notice.
